Challenge 01 01
Restricted installation space
Measure the available depth, length and removal route; a fitting can still be impractical to service.
JTC Lighting Solution
Lighting engineered for ventilation hood integration.
Ventilation hood lighting is an equipment-integration task. Length, cut-out, mounting, wiring, thermal exposure, grease and service access should be coordinated before fabrication.
Application contextUnderstand the operating environment.
Engineering requirementsReview heat, moisture, cleaning and integration.
Solution pathwaysConnect requirements to appropriate systems.
Project supportPrepare drawings and data for selection.
Direct Answer
Ventilation hood lighting is an equipment-integration task. Length, cut-out, mounting, wiring, thermal exposure, grease and service access should be coordinated before fabrication.
02 · Equipment-Integration Inputs
Read the Hood Drawing First
Read the Hood Drawing First
Turn a hood drawing into an installation decision.
Ventilation-hood lighting is governed by the equipment envelope. The cut-out, available length, mounting plane, wiring route, thermal zone and removal path should be agreed before fabrication.
✓Confirm the cut-out, flange or mounting interface against the latest drawing.
✓Locate cable entry away from heat, grease collection and service conflicts.
✓Plan replacement access without dismantling unrelated hood components.
03 · Challenges
Hood-Integration Constraints
Hood-Integration Constraints
Four drawing-level constraints to resolve before fabrication.
These inputs are more useful than a generic “hood light” request.
Challenge 02 02
Thermal exposure
Locate the luminaire relative to cooking heat, ductwork and the hood’s expected operating temperature.
Challenge 03 03
Grease environment
Define where grease can collect and how the chosen construction will be cleaned in situ.
Challenge 04 04
Wiring and service access
Coordinate cable exit, connection point and replacement access with the equipment manufacturer.
04 · Requirements
Specification Inputs
Specification Inputs
Hood drawing data required before model selection.
Resolve the physical integration on the current hood drawing, then confirm the model configuration with controlled documents.
01 Approved hood drawing
02 Confirmed integrated length
03 Defined cut-out and mounting
04 Coordinated wiring
05 Environment review
06 Cleaning and service access
05 · Recommended Approaches
Engineering Paths
Engineering Paths
Approaches commonly considered.
The exact path depends on the environment and project documents.

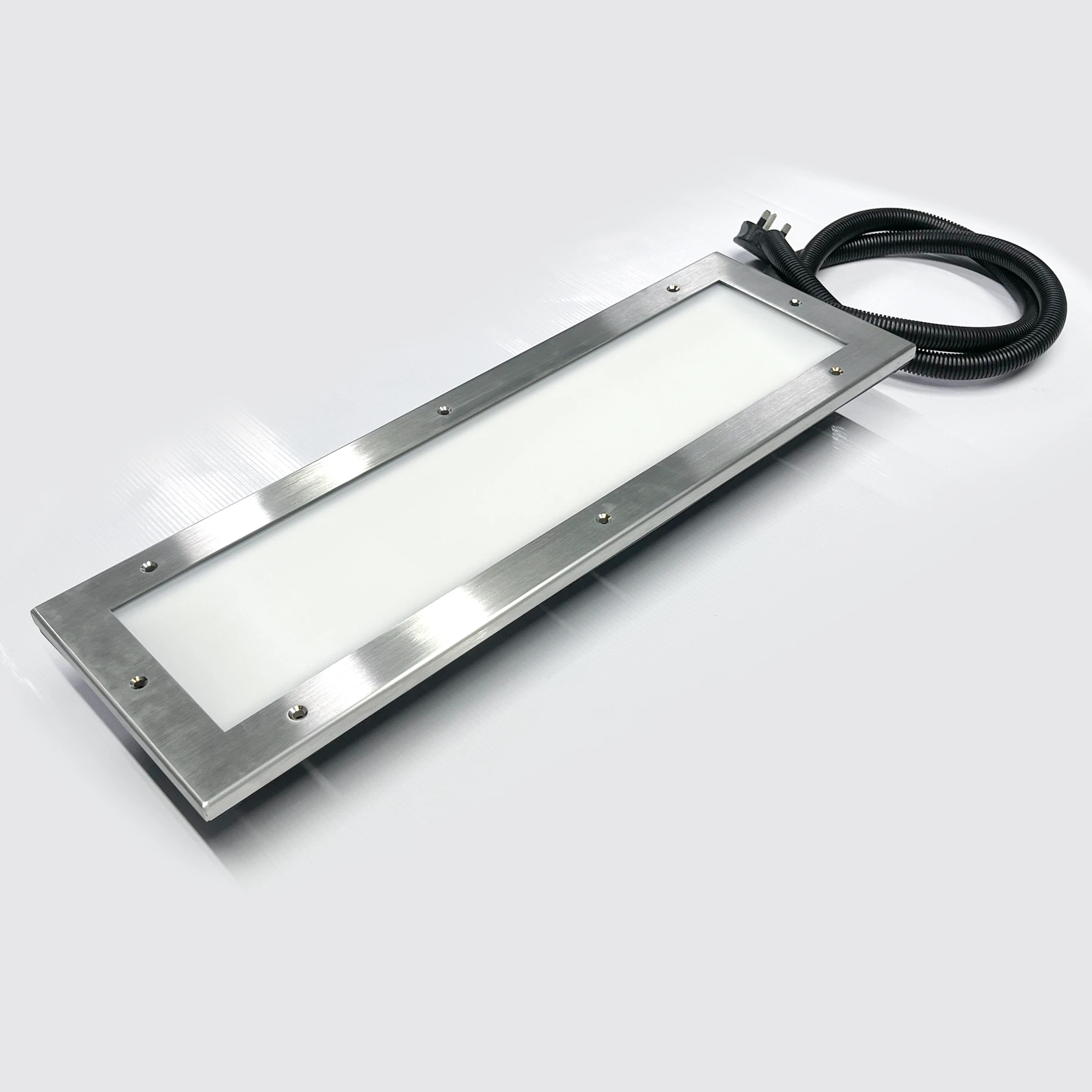

HL Series length selection
Connect this approach to the relevant product family and approved technical data.
Equipment-level coordination
Connect this approach to the relevant product family and approved technical data.
Model-document verification
Connect this approach to the relevant product family and approved technical data.
06 · Application Areas
Zone Mapping
Zone Mapping
Typical zones requiring separate review.
Zone-level classification prevents one generic specification from being applied everywhere.
Wall canopy hoods
Assess exposure, cleaning, mounting and service access.
Island hoods
Assess exposure, cleaning, mounting and service access.
Central cooking lines
Assess exposure, cleaning, mounting and service access.
Hotel kitchens
Assess exposure, cleaning, mounting and service access.
OEM hood systems
Assess exposure, cleaning, mounting and service access.
08 · Direct Answers
Frequently Asked Questions
Frequently Asked Questions
Common project questions.
Answers are concise and do not replace controlled product documents.
What should be evaluated first?
Ventilation hood lighting is an equipment-integration task. Length, cut-out, mounting, wiring, thermal exposure, grease and service access should be coordinated before fabrication.
Can one product fit every area?
Not automatically. Each zone and installation should be reviewed separately.
What information improves selection?
Provide drawings, environmental conditions, cleaning method, mounting, dimensions and required documents.
Where are exact product specifications found?
Use the approved model datasheet and installation instructions.
Project Support
Submit Project Requirements →Need a project-specific recommendation?
Share the application, environment, cleaning method, drawings and required documentation.
