Integrated LED architecture
A purpose-built product form replaces the multi-component tube-in-box arrangement.
JTC Product Series

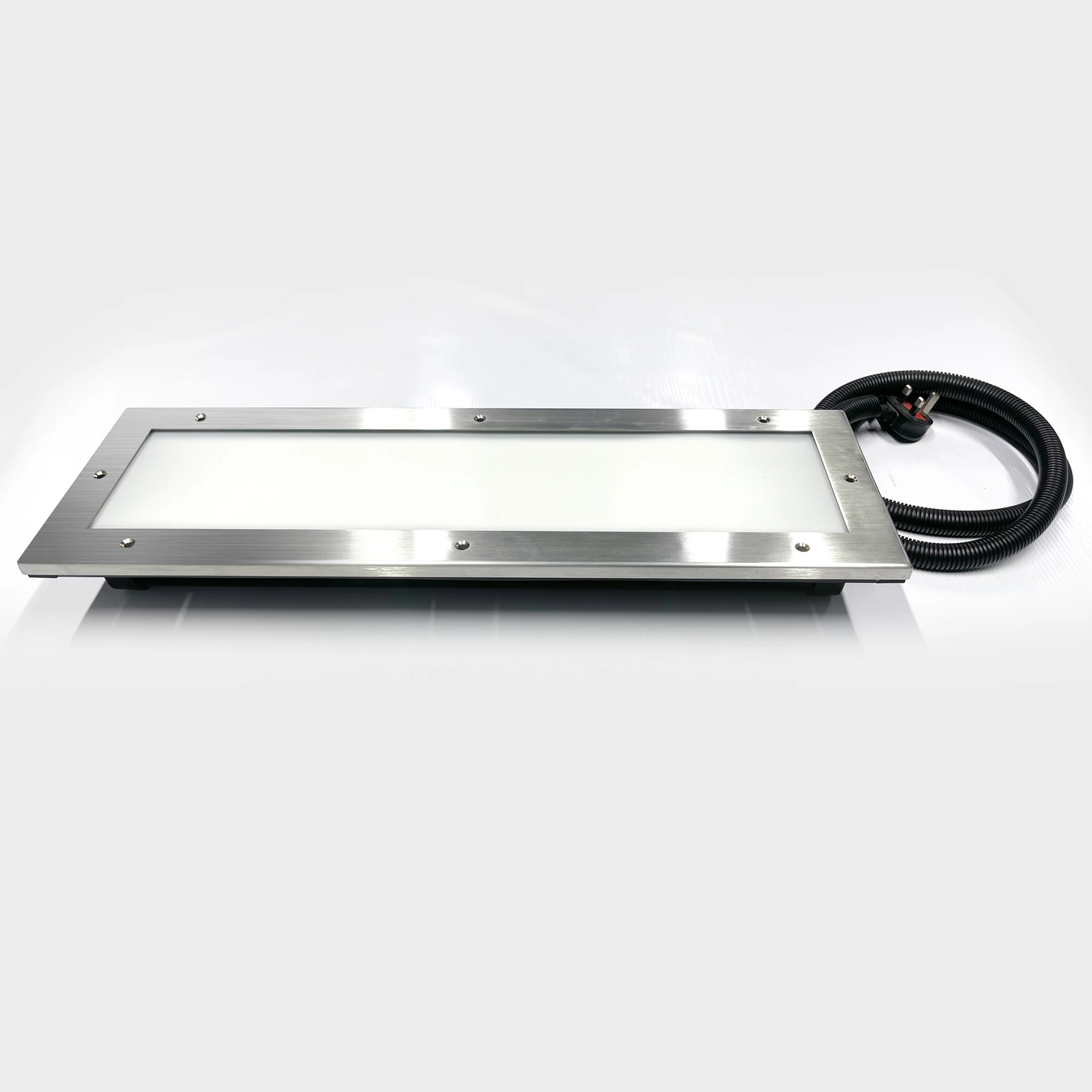

HL Series integrated kitchen light for hood and equipment systems.
The HL Series is the official JTC integrated kitchen light family. HL-600 is the nominal 600 mm model and HL-1200 is the nominal 1200 mm model.
Application fitCheck the intended environment and installation.
Model architectureSelect the appropriate family and length variant.
Verified specificationsUse approved product documents for final data.
Integration supportConfirm mounting, wiring and equipment interfaces.
Product Overview
The HL Series is JTC’s integrated commercial kitchen and ventilation hood lighting family, available as HL-600 and HL-1200. Operating temperature is -30°C to +65°C; 4000K is standard with optional 3000K–6500K.
HL Series 02 · Product Overview
Integrated Kitchen & Hood Lighting
Integrated Kitchen & Hood Lighting
HL Series
The HL Series is JTC’s integrated commercial kitchen and ventilation hood lighting family, available as HL-600 and HL-1200.

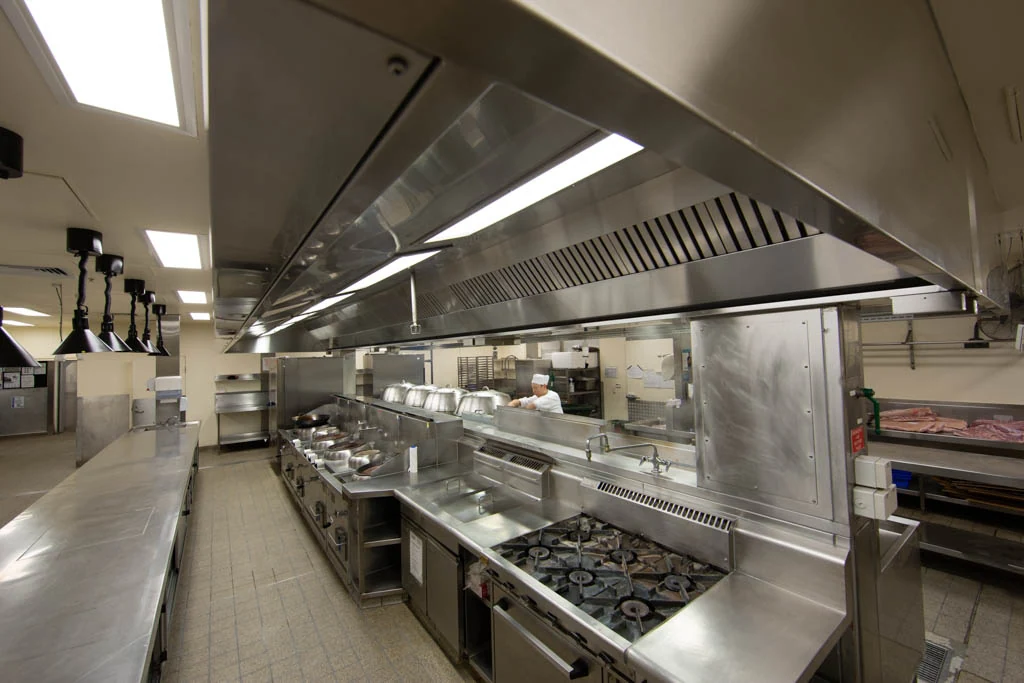

✓ Integrated installation for commercial kitchen canopy and hood systems
✓ Operating temperature: -30°C to +65°C
✓ 4000K standard; optional 3000K–6500K
✓ HL product compliance: CE, RoHS, SAA and PSE, subject to applicable model and market configuration
03 · Product Gallery & Video
Real Product Details
Real Product Details
Review the product architecture from multiple angles.

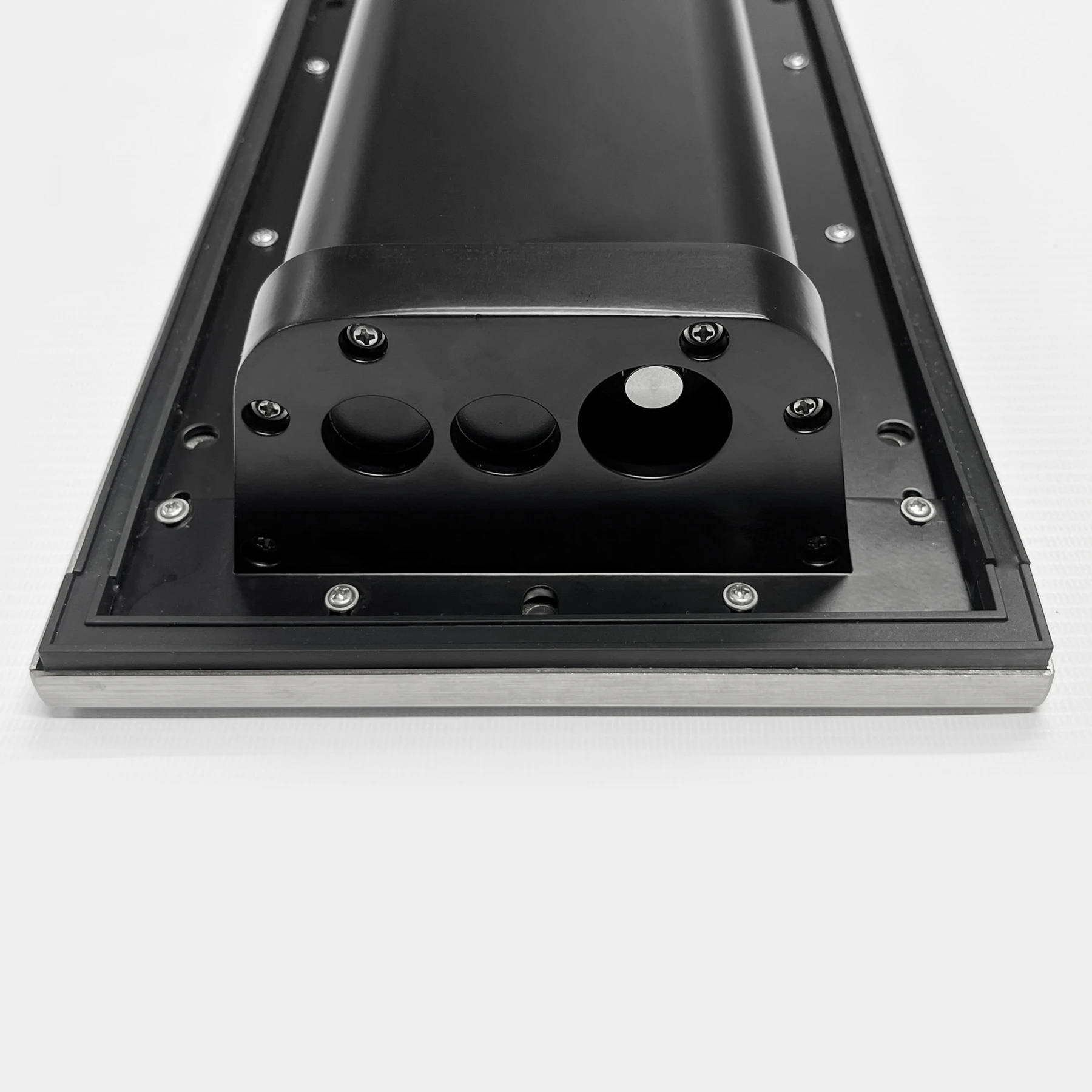

Front, rear, terminal and integration views help equipment partners review construction before requesting drawings.
Product Walkthrough
HL Series structure and finish overview

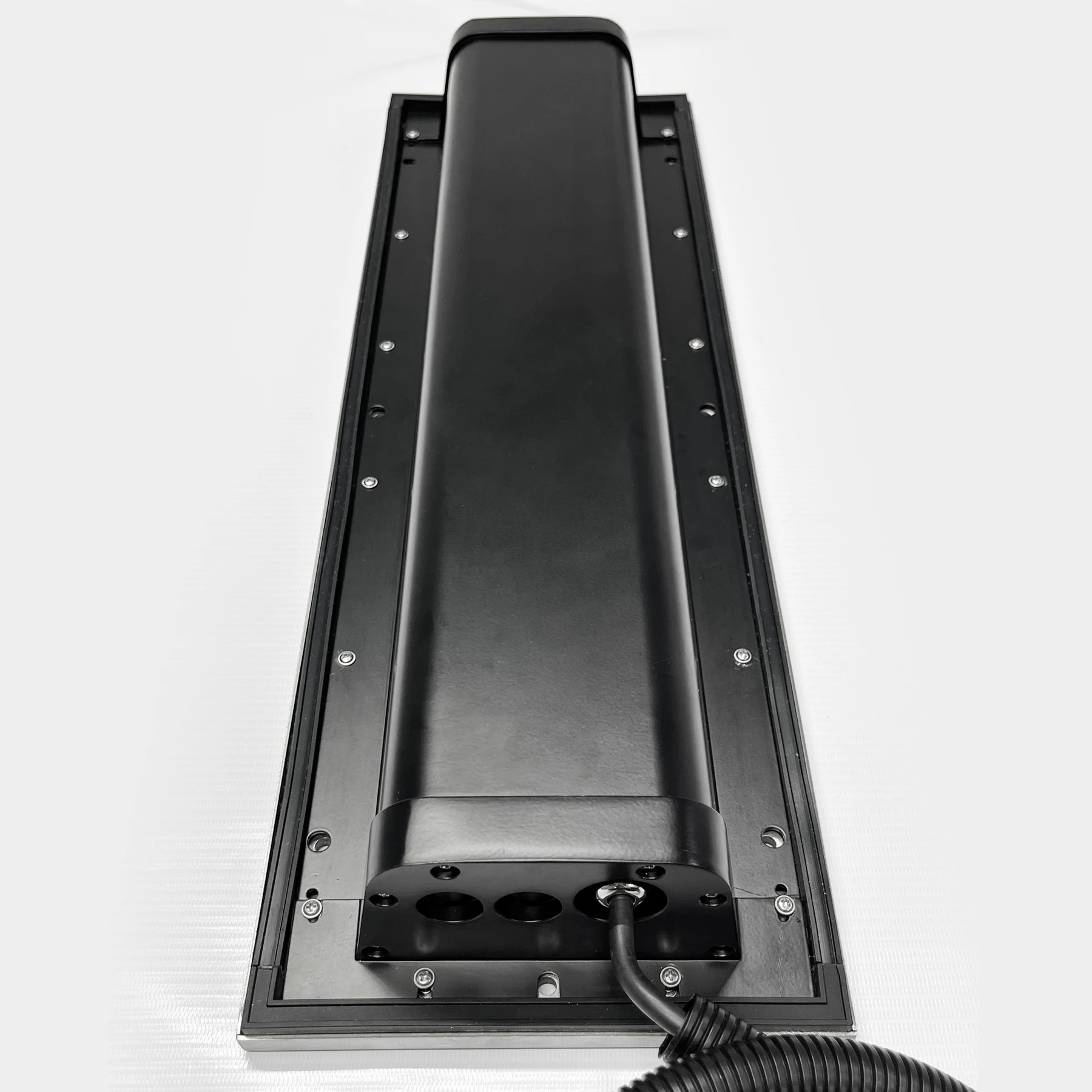

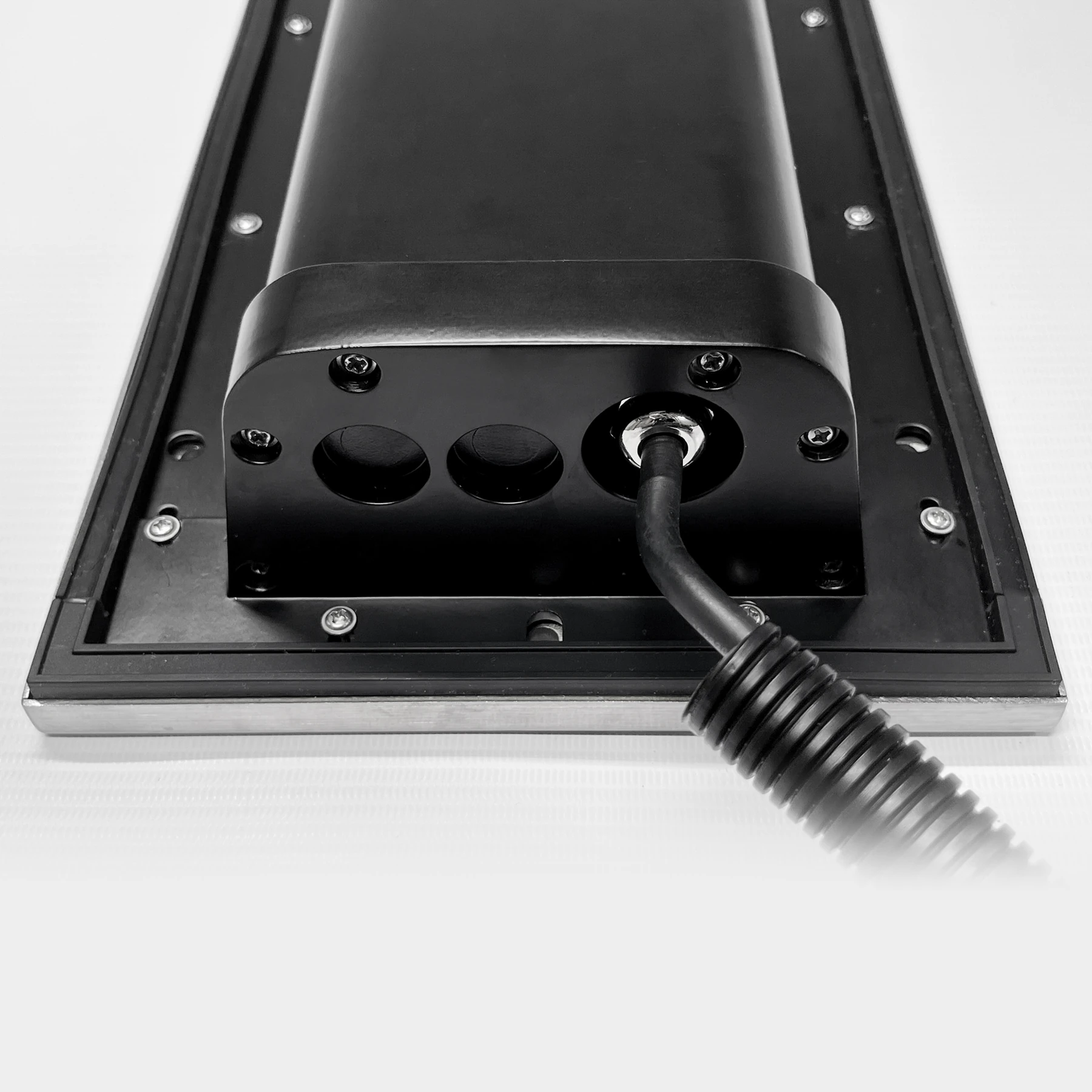

A short visual review of the light-emitting surface, rear housing, cable entry and integrated construction.
04 · Engineering Advantages
Integrated Architecture
Integrated Architecture
Designed around commercial kitchen and hood conditions.
Product claims below are based on the current HL Series brochure and comparison materials; final configuration remains subject to approved order documents.
1.5 mm aluminum thermal structure
The direct aluminum heat path supports faster heat transfer from the LED assembly.
Sealed kitchen construction
The integrated structure is designed to reduce contamination traps and simplify cleaning.
Installation and service access
Recessed integration supports a cleaner canopy surface and practical maintenance.
05 · Model Architecture
Available Lengths
Available Lengths
HL Series model comparison.
HL-600 and HL-1200 are length-based models within the same integrated product family.
06 · Technical Specifications
Current Controlled Data
Current Controlled Data
HL Series technical information.
Final order documents and market-specific certification files remain the controlled source for procurement and approval.
| Item | Value |
|---|---|
| Models | HL-600 / HL-1200 |
| Power | 18W / 36W |
| Luminous flux | 2430 lm / 4860 lm |
| Efficacy | 135 lm/W |
| Input voltage | AC200–264V |
| Power factor | >0.95 |
| CRI | >80 |
| Beam angle | 100° |
| Protection | IP65 |
| Operating temperature | -30°C to +65°C |
| CCT | 4000K standard; optional 3000K–6500K |
| HL product compliance | CE · RoHS · SAA · PSE |
| Warranty | 3 years |
Energy comparison scope
Up to 50% energy saving applies only when compared with the specific traditional twin-fluorescent-tube configuration shown in JTC’s comparison material. Actual savings depend on configuration, operating hours and project conditions.
08 · Direct Answers
Frequently Asked Questions
Frequently Asked Questions
Common product questions.
Answers use the confirmed HL Series temperature, CCT and certification scope.
What operating temperature is used for HL Series products?
The unified website specification is -30°C to +65°C.
What CCT options are available?
4000K is standard. Optional configurations cover 3000K–6500K.
Which certifications apply to HL products?
HL product compliance includes CE, RoHS, SAA and PSE, subject to the applicable model and market configuration. Company-level UL, ETL, DLC and TÜV capabilities must not be applied automatically to HL-600 or HL-1200.
Does “up to 50% energy saving” apply to every project?
No. It refers to the specified comparison with a traditional twin-fluorescent-tube solution in JTC’s source material. Actual savings depend on the selected configuration, operating hours and project conditions.
Project Support
Submit Project Requirements →Need a project-specific recommendation?
Share the application, environment, cleaning method, drawings and required documentation.
