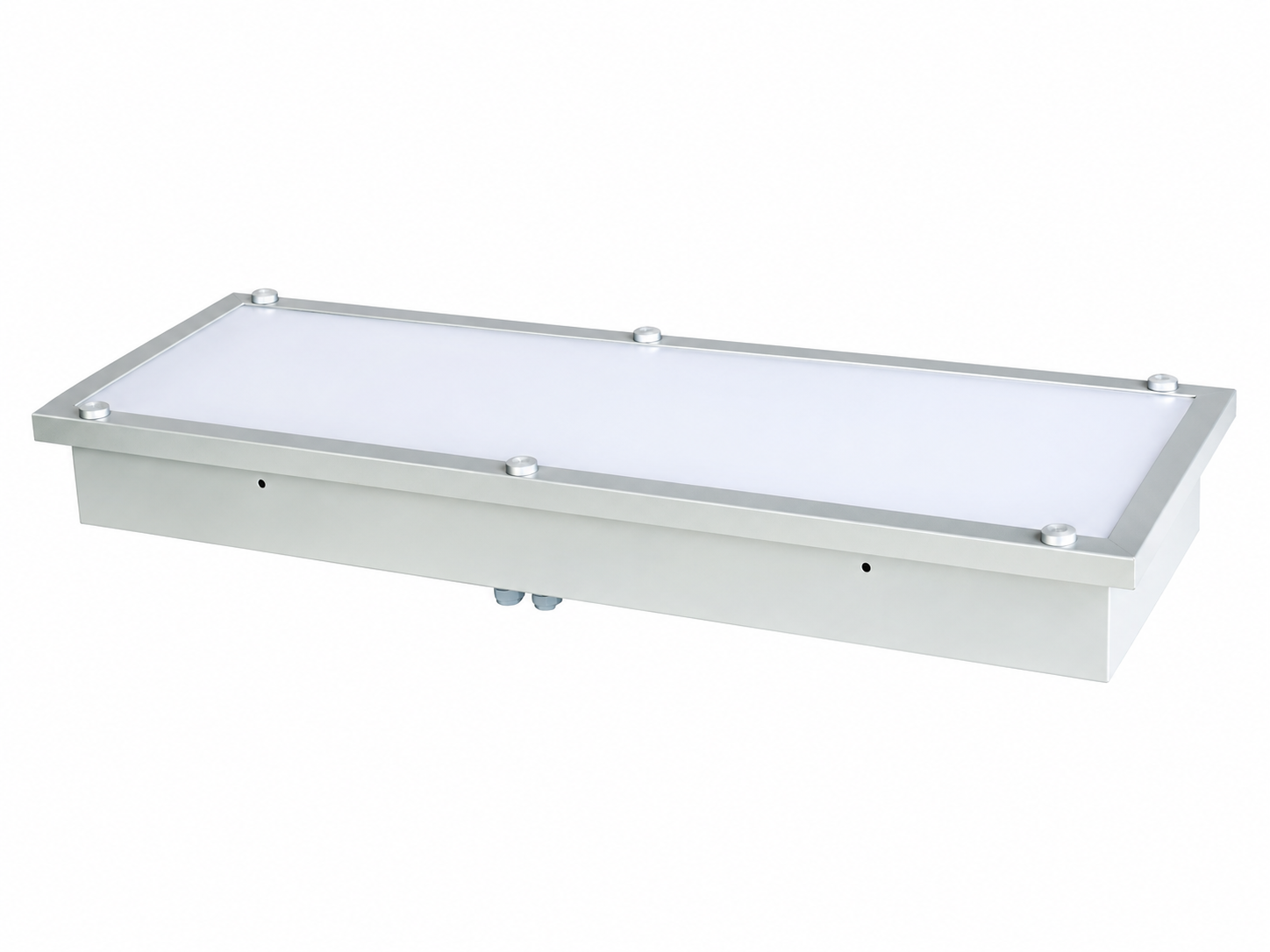

Recessed ceiling luminaires for dry accommodation and service spaces on ships, available in LED and fluorescent configurations.
Use this guide to narrow the RC configuration, then confirm the selected model against the approved product documentation.
Lighting for marine environments with recessed installation.
F suffix identifies the IP44 configurations
A low-profile ceiling arrangement keeps the luminaire integrated with the cabin finish.
The reference drawing shows bending-cover and aluminium-alloy cover-frame constructions.
LED tube or LED module configurations can be selected without changing the exterior or mounting dimensions.
Models with the suffix E provide a 5 W emergency function with luminous flux above 150 lm.
Use in dry ship cabins and interior spaces only within the stated product scope. Confirm voltage, enclosure rating, material and emergency option for the ordered model.
Selectable colour temperature from 3000 K to 6500 K, with two lengths and two enclosure ratings.
| Model | Power | Output | Protection | Weight |
|---|---|---|---|---|
| CLQM1216F | 2 × 10 W | >1,400 lm | IP44 | 3.2 kg ±5% |
| CLQM2216F | 2 × 20 W | >2,800 lm | IP44 | 5.2 kg ±5% |
| CLQM1216 | 2 × 10 W | >1,400 lm | IP22 | 3.2 kg ±5% |
| CLQM2216 | 2 × 20 W | >2,800 lm | IP22 | 5.2 kg ±5% |
Traditional fluorescent configurations retained for marine projects that require this lamp format.
| Model | Power | Protection | Material | Weight |
|---|---|---|---|---|
| CYQ2216F | 2 × 18 W | IP44 | Steel | 5.0 kg ±5% |
| CYQ4216F | 2 × 36 W | IP44 | Steel | 9.1 kg ±5% |
| CYQ2216 | 2 × 18 W | IP22 | Steel | 5.0 kg ±5% |
| CYQ4216 | 2 × 36 W | IP22 | Steel | 9.1 kg ±5% |
Dimensional references for the short and long housings. All values are in millimetres.
| Model family | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| CLQM1216 / CYQ2216 | 686 | 648 | 380 | 175 | 218 | 248 |
| CLQM2216 / CYQ4216 | 1300 | 1268 | 870 | 175 | 218 | 248 |
RC is the recessed vessel-interior ceiling-lighting path for dry ship spaces. It is distinct from HL Series, which serves commercial-kitchen and ventilation-hood integration.
| Environment | Selection focus | Recommended path |
|---|---|---|
| Dry ship accommodation cabins | Recessed ceiling integration, voltage, enclosure rating and the selected light-source configuration. | Review RC LED or fluorescent models against the vessel interior drawing and ordered configuration. |
| Dry vessel service interiors | Available mounting envelope, source type, protection option and emergency requirement. | Confirm the model family, A-F dimensional reference and installation conditions before quotation. |
| Marine galley or ventilation-hood projects | Whether the requirement is a recessed vessel-interior ceiling light or an equipment-integrated kitchen-lighting path. | Review HL Series for commercial-kitchen, ventilation-hood and marine-galley integration. |
RC Series is a recessed marine ceiling-lighting range for dry accommodation and service interiors on ships, with LED and fluorescent configurations.
RC Series is designed for recessed ceiling installation. Its low-profile arrangement integrates the luminaire with the cabin ceiling finish.
RC Series is the recessed vessel-interior ceiling-lighting path. HL Series is the commercial-kitchen and ventilation-hood lighting path, including marine-galley integration.
This page defines RC Series for dry ship cabins and interior spaces only. It does not make a hazardous-area or explosion-proof suitability claim.
Confirm the vessel interior location, source type, voltage, enclosure rating, model length, mounting envelope, material requirement and whether an emergency option is required.
Send the installation drawing, environment, quantity and documentation requirements for model confirmation.
