Flush-mounted LED panels for cleanrooms, food processing areas and hygiene-sensitive interiors, with sealed housings and model-specific optical performance.
Use this guide to narrow the CL configuration, then confirm the selected part number against the approved product documentation.
Lighting for kitchens, cleanrooms and food processing environments.
Select by enclosure and installation condition
At 4000 K according to the product tables
Beveled edges and a dust-resistant cover rim reduce ledges where contamination can collect.
Keyhole fixing and spring-loaded suspension cords support panel removal during installation and maintenance.
A push-in waterproof connector and, on the IP66 version, an integrated-breather cable gland support ingress protection.
Welded powder-coated steel housing, thermoformed PMMA cover and white RAL 9003 finish.
Protection rating, driver, dimensions and optical performance vary by part number. Confirm the selected model and approved datasheet before specification.

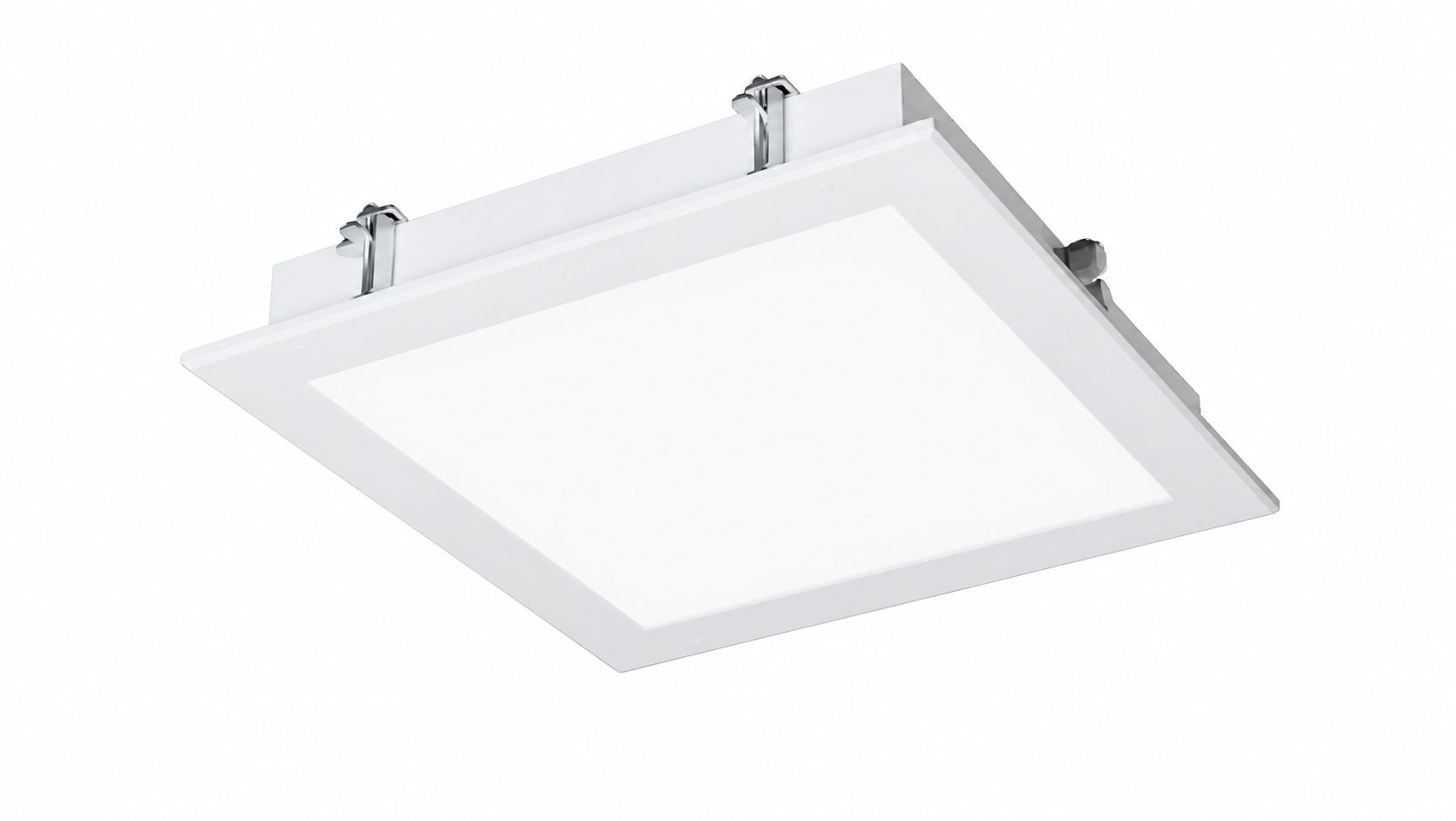

High-output cleanroom panel with low glare, high colour rendering and a seven-year product warranty.
| Part number | Format | Power | Output | Beam angle |
|---|---|---|---|---|
| CL-EX6060-XX35G-CP | 600 × 600 class | 35 W | 4,600 lm | 87° ±5° |
| CL-EX6262-XX35G-CP | 620 × 620 class | 35 W | 4,600 lm | 87° ±5° |
| CL-EX1230-XX35G-CP | 1200 × 300 class | 35 W | 4,600 lm | 87° ±5° |

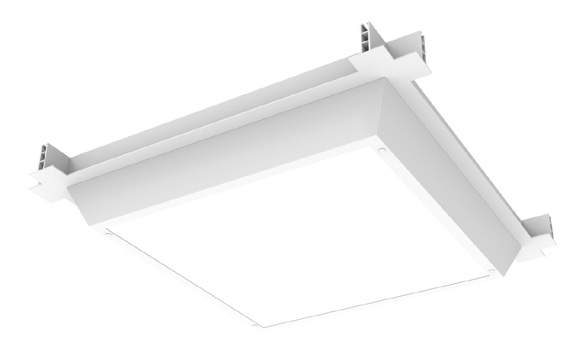

Two power and colour-rendering paths in square and rectangular housings, with a five-year product warranty.
| Part number | Size | Power | CRI | Efficiency / output |
|---|---|---|---|---|
| CL-EX6060-XX36E-CS2 | 650 × 650 × 65 mm | 36 W | ≥80 | 120 lm/W · 4,400 lm |
| CL-EX1230-XX36E-CS2 | 1250 × 350 × 65 mm | 36 W | ≥80 | 120 lm/W · 4,400 lm |
| CL-EX6060-XX44N-CS2 | 650 × 650 × 65 mm | 44 W | ≥90 | 100 lm/W · 4,400 lm |
| CL-EX1230-XX44N-CS2 | 1250 × 350 × 65 mm | 44 W | ≥90 | 100 lm/W · 4,400 lm |

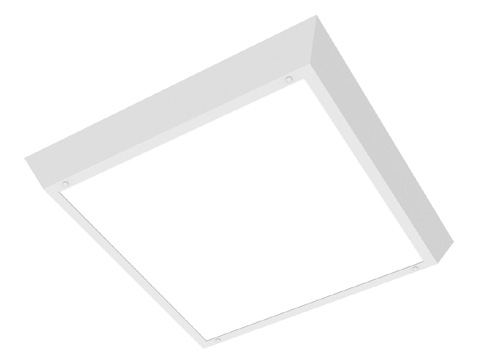

A shallow cleanroom panel for applications where the exposed front face requires IP54 protection.
| Part number | Size | Power | Output | Beam angle |
|---|---|---|---|---|
| CL-EX6060-XX36E-CB | 635 × 635 × 60 mm | 36 W | 4,400 lm | 110° |
| CL-EX1230-XX36E-CB | 1235 × 335 × 60 mm | 36 W | 4,400 lm | 110° |
Select any product image to inspect the full-resolution reference. Request approved outline drawings for the selected part number.
CL is the recessed and flush panel path for hygiene-sensitive interiors. It is distinct from HL Series, which serves commercial-kitchen and ventilation-hood integration.
| Environment | Selection focus | Recommended path |
|---|---|---|
| Cleanrooms and controlled interiors | Ingress protection, glare control, colour rendering, panel size and maintenance access. | Start with CL IP66, IP65 or IP54 Front according to the required protection level and installation envelope. |
| Food processing and preparation areas | Cleanable geometry, sealed connection, material finish and the project cleaning and installation conditions. | Review the CL protection path against the approved project requirements before specification. |
| Hygienic commercial-kitchen interiors | A recessed or flush panel solution for hygiene-sensitive interior zones. | Use CL for the panel-lighting path; use HL Series when the project requires commercial-kitchen or ventilation-hood integration. |
CL Series is designed for cleanrooms, food processing and preparation areas, hygienic commercial-kitchen interiors and controlled manufacturing spaces that require a recessed or flush cleanroom panel-lighting path.
CL Series is the recessed and flush cleanroom-panel path for hygiene-sensitive interiors. HL Series is the commercial-kitchen and ventilation-hood lighting path, including marine-galley applications.
Start with the required protection level, installation dimensions, glare and colour-rendering requirement. Then confirm the selected part number and approved technical documentation for the project.
Provide the installation drawing, required panel size, environment, cleaning conditions, quantity and documentation requirements so JTC can confirm the appropriate part number.
